Heavy Duty Hot Dip Galvanized Triangle Fence Panel for Industrial Boundaries

Heavy industrial plants and infrastructure compounds need a fence that can take impact from vehicles, equipment and site activity without constant repair. This heavy duty panel uses 6.0mm wire and a 300g/m2 hot dip galvanized coating, the heaviest specification in the range. The 2.0m x 2.5m panel keeps handling practical while the four 3D folds provide stiffness across the span. The natural galvanized finish is left unpainted, so the zinc layer remains visible and maintenance teams can assess corrosion at a glance.

Key Features

• 6.0mm wire for high impact and deformation resistance
• 300g/m2 hot dip galvanized coating for harsh industrial air
• 2.0m x 2.5m panel size balances strength and handling weight
• Four 3D folds stiffen the panel across the span
• Natural galvanized finish for easy corrosion inspection
• Round 60mm posts with sealed caps for long service life

Technical Specifications

Panel Structure and Detail

The 6.0mm wire is welded on a heavy jig, then folded into four 3D profiles. The weld cycle is controlled to ensure full fusion at each intersection, because a heavy wire panel relies on the weld strength as much as the wire itself. The 300g/m2 zinc coating is applied after all cutting and welding, so the cut ends and weld points receive a continuous protective layer. Round posts are capped and drilled to accept the clamp assembly without site modification.

Post System and Installation

Posts are set in concrete at 2.5m centres with footings designed for the local wind and vehicle load. The panel is lifted into the clamps and fixed with heavy bolts. Because the panel is heavier than standard fencing, we recommend mechanical lifting for long runs and a two-person team for small sections. Setting-out drawings show post positions, gate openings and recommended footing details. The galvanized finish can be left as supplied or painted on site if a project colour is required.

Application Scenarios

Heavy industrial plants, mining sites, steel yards, infrastructure compounds and utility installations use this panel where impact and corrosion are both concerns. The 6.0mm wire resists deformation from vehicles and equipment, while the 300g/m2 zinc coating suits sites with dust, humidity and chemical exposure. The open 50 x 200mm mesh keeps visibility for safety patrols and does not trap wind like a solid wall. Where a project needs a specific corporate colour, the panel can be supplied with a powder or PVC top coat over the galvanized core.

Packing and Delivery

Panels are stacked with steel corner protection and strapped to reinforced pallets. Posts are bundled by length, and clamps are packed in clearly labelled boxes. Because of the panel weight, each pallet is limited to a safe handling load and marked with the gross weight. Lead time is normally 15 to 25 days after deposit, depending on quantity and coating specification.

Ordering Information

To prepare an accurate quotation, please confirm the panel height and width, wire diameter, mesh aperture, post type, colour and order quantity. We can supply a sample panel and post set for approval before the main production run. Our team will reply with a specification sheet, packing plan and delivery schedule within one working day.

Contact us today to discuss your triangle fence panel requirements and receive a project-specific quotation.

Product Detail Images

Triangle bending structure, fold layout and coating build-up

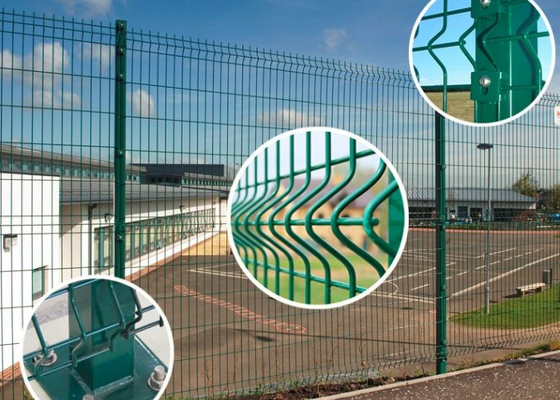

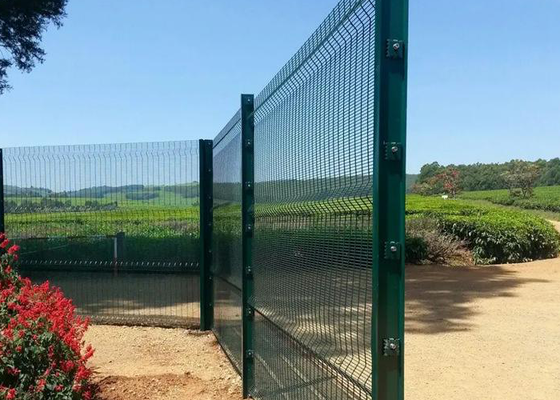

Panel edge, post connection and installed fence line
